30-150TPD Wheat Flour Milling Plant

30-150TPD Wheat Flour Milling Plant
30-150TPD wheat flour milling plant is vertically steel constructed. The sifters lie on the top of the plant, thus allowing the stock to pass down through the sifters by gravity rather than only with the use of a pneumatic device. Its design reduces power consumption and simplifies operation of wheat milling process. What’s more, we also have developed several bearing mills, patented aluminum sifter screens and steel frames to increase the capacity of extraction.

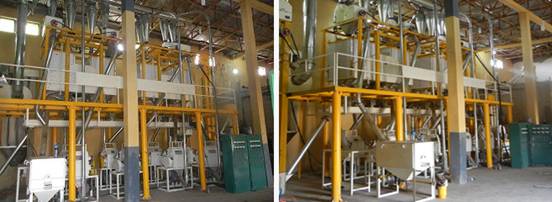

40TPD Wheat Flour Milling Plant Under Construction

Model	Capacity (TPD)	Power(KW)	Weight(T)	Dimension(L×W×H) m
6FTFG40A	40	99	15	15×6×7

60TPD Wheat Flour Milling Plant

Model	Capacity (TPD)	Power(KW)	Weight(T)	Dimension(L×W×H) m
6FTFG60A	60	135	19	26×8×7.5

Compared with other plant, this 60TPD flour milling plant enjoys the advantage of compact structure, convenient installation and easy operation, low cost and small space due to its new design.
80TPD Wheat Flour Milling Plant

Model	Capacity(TPD)	Power(KW)	Dimension(L×W×H) m
6FTFD	80	230	22×8×10

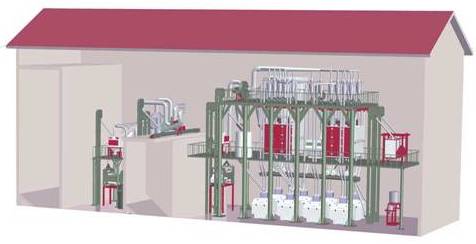

In the steel-constructed series of complete sets of wheat flour milling plant, flour milling equipment is assembled vertically. The flour mill, flour receiver, and bran receiver are located on the first floor, and the high-plane sifter and blower the second floor, while the air seal and cyclone the third floor. Our 80TPD wheat flour plant also enjoys the advantages of compact structure, convenient installation, easy operation, low power consumption, and long service life.
