M6FTY-10 Small Scale Flour Mill Machinery

Flour has been the staple food of many nations all over the world since ancient times. Flour mill machinery is indispensable in flour production. Our M6FTY-10 small scale flour mill machinery is mainly and specially made for small scale flour production. Due to its low investment, it is widely seen in villages.

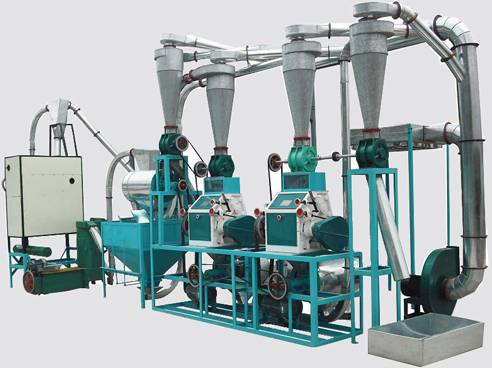

M6FTY-10-small-scale-flour-mill

Primary Technical Parameter:

1.             Output:10T of grain within 24hours

2.             Extraction flour: when the quality of the grain conform to the stipulation of China GB1351-86(the volume weight is over (770g/l) F1 flour:60% F2 flour:70% Standard flour:78%

3.             Quality of flour: meet the stipulation of China GB1355-86

4.             Total power: 26.5kw,3 phase,380v,50hz

5.             Water content: add 2-3 percent water to the grain according to the water content of raw material

6.             The covering area: 6.6*3.8*3.5m

7.             The tempering tank includes two parts, the size of each tank is: 0.9*1.5*1.5m



Equipment List :

No Name Model Qty
1 Flour milling machine 6fy-35 2
2 Fan 6-23no-5c 1
3 Fan 8-18no-4a 1
4 Reel separator No30 4
5 Stoner Qs-40 1
6 Scourer 6nf-90 2
7 Air lock Gfy-150 4
8 Sliding separator 1
9 Auger 150*1000 1
10 Scourer 20 1
