Integrated Sesame Oil Press

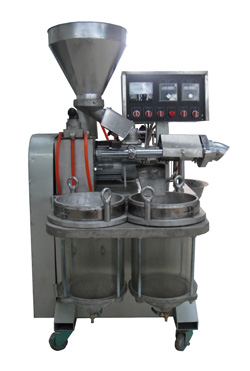

Sesame-Oil-PressIntegrated sesame oil press combines the processes of pressing and filtering together. As it’s movable, it is widely used to press onsite oil, whose processing process is transparent to people. Consequently, people rest assured on the quality of oil made by integrated sesame oil press. This oil press can press sesame oil and walnut oil for immediate consumption.

YZS-30 integrated sesame oil press has many advantages, like: small size, compact structure, easy operation, convenient maintenance, low power consumption, low noise and long service life. It can press about 0.4kg raw material one time.

As for the electricity situation like voltage and hertz, it can be customized according to our clients’ specific requirements.

Key Equipments of Integrated Sesame Oil Press

 Oil-Filter  Electrical Control Box  Hopper
Oil Filter Electrical Control Box Hopper

Technical Parameters

Model
Diameter of Shaft
Rotating Speed of Shaft
Inner Diameter of Pressing Case
Production Capacity
Dry Cake Residue
YZS-30
37 mm
60-70 rpm
38 mm
15– 20 kg/h
≤8%
YZS-60
37 mm
60-70 rpm
38 mm
30 kg/h
≤8%

Technical Parameters of  Integrated Sesame oil press

Model
Motor
V-belt
Net Weight
Dimension
YZS-30

1.5KW (YC90L-4) 220V, Single phase,50HZ

1050 B TYPE
156 KG
700×700×1200 MM
YZS-60
2.2 KW (YC90L-4)220V, Single phase,50HZ
1050 B TYPE
180 KG
700×700×1200 MM
