As a leading Chinese manufacturer and exporter of oil press machines, we have been professional for more than a decade. We hold the expertise and latest advanced technology. Our oil presses have been exported to many countries and won good reputations worldwide. All of them can be customized according to our customers’ specific needs.
We provide a variety of oil press machines. They can press oil from cotton seeds, sesame, kernel, peanut, rapeseed, palm seed, olive, coconut, olive, sunflower seed and soybean, etc.
Small Scale Oil Press Machine
Our small scale oil press machines press oil out from the raw material with a screw worm, which advances the raw material to the smaller and smaller space. Due to strong frication and high pressure, the temperature in the pressing chamber rises, and this consequently increases the oil output rate.
|
Model
|
Capacity
|
Power(Kw)
|
Net Weight(kg)
|
Outside Dimension(mm)
|
|
YZS-68
|
50kgh
|
5.5
|
140
|
920*490*780
|
|
YZS-80
|
100kgh
|
5.5
|
330
|
1320*540*1020
|
|
YZS-95
|
150-200kgh
|
7.5-11
|
620
|
1620*630*1260
|
|
YZS-100
|
200kgh
|
7.5
|
80
|
41640*640*1200
|
|
YZS-120
|
250kgh
|
11
|
650
|
1820*630*1300
|
|
YZS-130
|
200-300kgh
|
11
|
520
|
1870*640*1200
|
|
YZS-160
|
400-500kgh
|
18.5
|
820
|
1930*680*1480
|

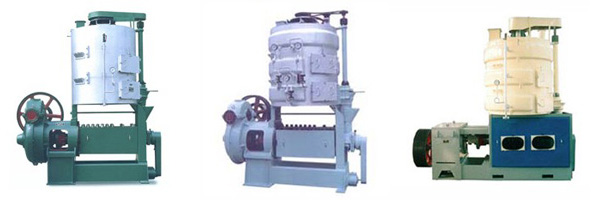

Large Scale Oil Press Machine
Our large scale oil press machines are widely used in medium and large scale oil plants. They are divided into two kinds: hot oil pressing machine and cold oil pressing machine. All of them are mainly characterized by compact structure, low power consumption, low noise, high oil output rate and long service life.
|
Model |
Capacity |
Power (kw) |
Net Weight (kg) |
Outside Dimension (mm) |
|
YZL-18 Oil Expeller |
7-10t/d |
27.2 |
3500 |
3176*1850*2600 |
|
YZL-20/80 Oil Expeller |
15-20t/d |
18.5 |
5000 |
2850*1850*3270 |
|
60-80t/d(Prepress) |
18.5 |
5000 |
2850*1850*3270 |
|
|
YZP-24 Oil Expeller |
40-50t/d |
36.5 |
8500 |
3200*1850*3600 |
|
YZL/YZP-28 Oil Expeller |
40-60t/d |
45 |
11500 |
3700*1920*3850 |
|
140-160t/d(Prepress) |
45 |
11500 |
3700*1920*3850 |
|
|
YZL/YZP-32 Oil Expeller |
100-130t/d |
90/110 |
11000 |
4100*2720*3850 |
|
260-300tt/d(Prepress) |
90/110 |
11000 |
4100*2720*3850 |

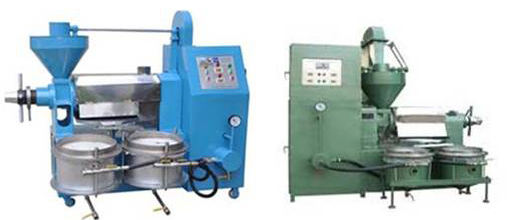

Integrated Oil Press Machine
Integrated oil press machine is our advanced model from the screw oil press. Our integrated oil press machine combines the processes of pressing and filtering together. It is mainly composed of press, motor, vacuum filter, heater and electric cabinet. Its filtering drum is vacuum with sight glass, which helps the user to control the speed of oil cleaning process.
|
Model
|
Capacity(kg/h)
|
Power(Kw)
|
Net Weight(kg)
|
Packing(mm)
|
|
YZS-80A
|
80-125
|
5.5
|
450
|
1860*670*1680 1060*590*600 |
|
YZS-100A
|
160-200
|
7.5
|
550
|
2270*750*1820 1220*590*600 |
|
YZS-120A
|
250
|
11
|
1000
|
2350*810*1870 1350*700*570 |
|
YZS-130A
|
330-420
|
15
|
1500
|
2500*800*1850 1500*700*570 |
