Home-use pellet mills generally refer to the flat die pellet mills, and they are specially made for home use. As biomass energy is clean, green renewable and economical, more and more people tend to make full use of biomass materials. As a result, an increasing number of people begin to make biomass pellets at home.
Our home-use pellet mills have won ISO9000 and CE certifications. They have many advantages mainly as follows: small size, light weight, compact structure, low cost, low power consumption, low noise, easy operation, convenient maintenance, and long service life. Besides, our pellet mills can adjust the moisture content and size of raw materials to make the most desirable pellets.
Key Components of Home-use Pellet Mill
 |
 |
 |
| Flat Die | Flat die and Press Rollers | Flat Die and Press Roller Installation |
Application:
Our pellet mills for home use make pellets from a variety of biomass materials: straw, rice husks, corn stalk, peanut shell, sawdust, wood shavings, wood chips, cotton stalks, and alfalfa, etc. Besides, they are also suitable for raw materials that are otherwise difficult to pelletize.

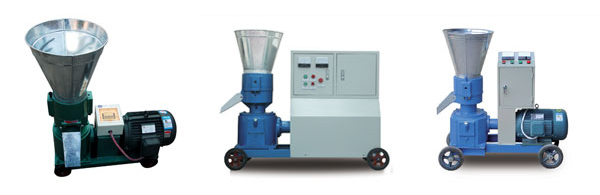

Technical Data of Electric Motor:
|
Model
|
Power(kW)
|
Output (kg/h)
|
Measurements (mm)
|
N.W/G.W (kg)
|
|
ZLSP150B D-Type
|
4
|
50-90
|
750*350*650
|
90/120
|
|
ZLSP200B D-Type
|
7.5
|
80-120
|
1000*430*950
|
200/230
|
|
ZLSP230B D-Type
|
11
|
150-300
|
1140*470*970
|
290/320
|
|
ZLSP260B D-Type
|
15
|
300-450
|
1200*500*1070
|
330/360
|
|
ZLSP300B D-Type
|
22
|
400-600
|
1220*600*1000
|
410/450
|
Technical Data of Diesel Engine:
 |
 |
| ZLSP 200A Diesel | ZLSP 150A Diesel andElectric Starting Key |
|
Model
|
Power (HP)
|
Output (kg/h)
|
Measurements (mm)
|
N.W/G.W (kg)
|
|
ZLSP150A D-Type
|
8
|
50-100
|
870*460*730
|
130/150
|
|
ZLSP200A D-Type
|
15
|
100-150
|
1180*560*950
|
280/310
|
|
ZLSP230A D-Type
|
22
|
150-300
|
1180*560*950
|
280/310
|
|
ZLSP260A D-Type
|
30
|
200-450
|
1840*700*1160
|
460/490
|
|
ZLSP300A D-Type
|
55
|
400-600
|
2200*600*1230
|
520/560
|
PTO Pellet Mill for Home Use

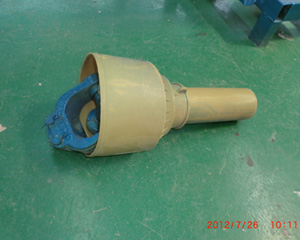

PTO pellet mill for home use is usually used together with a tractor or truck. Power Take-Off (PTO) is used as the driving force. Our PTO pellet mill is specially designed to be easily connected and disconnected.

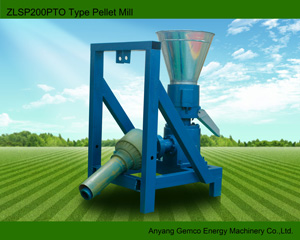

ZLSP-P 200PTO Pellet Mill
